AVM System 680

Urethane Vehicular Deck Coating

The AVM System 680SC® (replaces our previous 680SF) vehicular deck system is a solvent free, liquid applied, high solids, moisture cured waterproof system. The system utilizes an epoxy primer and easy to use polyurethane layers to complete the system. The AVM System 680SC vehicular deck system is a user-friendly application of a low odor coating that is specifically designed to be tough and durable enough to withstand vehicular traffic. It is an elastomeric system designed to expand and contract with normal structural movements.

SYSTEM COMPONENTS

Base Coat 680

5 Gal Bucket

Epoxy Primer A to mix with Primer B

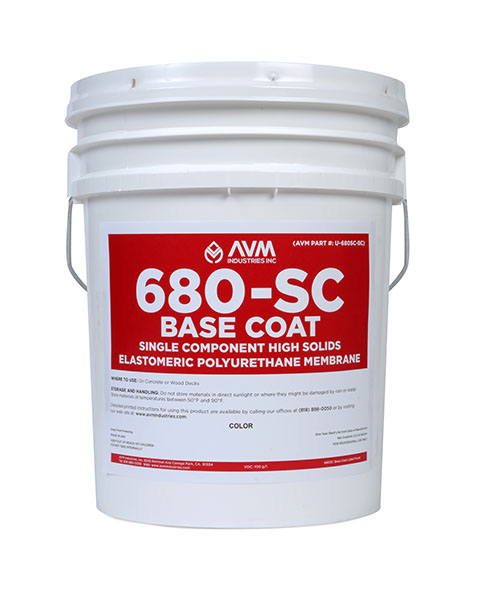

Base Coat 680

5 Gal Bucket

Single component high solids

Top Coat 680

5 Gal Bucket

Aliphatic polyurethane top coat

GALLERY

GALLERY

MATERIAL CALCULATOR

  • Enter Total Job Sq.Ft. Here:

  • Enter Ramps/Radii/Heavy Traffic Sq.Ft. Here:

  • Regular Traffic Sq.Ft. Shown Here:

  • SYSTEM COMPONENTS
  • WHAT YOU NEED
  • AVM Epoxy Primer

  • Gallons
  • Part-A / U-680SC-EP-A
  • Gallons
  • Part-B / U-680SC-EP-B
  • Gallons
  • (Mixing Ratio: 2 Parts-A with 1 Part-B)

  • AVM Base Coat

  • Gallons
  • AVM Part #: U680SC-BC

  • AVM Aromatic Top Coat

  • Gallons
  • AVM Part #: U-680SC-ARTC

  • Ramps/Turn Radii/Heavy traffic

  • Gallons *
  • AVM Part #: U-680SC-ARTC

  • Top Coat

  • Gallons
  • AVM Part #: U-680SC-ARTC

  • OPTIONAL COMPONENTS
  • Top Coat

  • Gallons
  • AVM Part #: U-680SC-ALTC

  • WANT TO SAVE A COPY?

Refer to page 2 of “Specifications Sheet” (in pdf) for available packaging sizes
Epoxy Primer is a two component primer. Mixing ratio: Mix two parts Part-A with one part Part-B.
This is an estimating tool only. Actual quantities needed may vary by job conditions and other factors.
Total system thickness may vary by +/- 3 mils.
Additional components/materials not listed here might be needed.
For additional guidance, contact our sales staff at 818-888-0050
AVM reserves the right to change any information on this document at any time witout notice.

* Ramp’s Surfaces are estimated at 20% of the total square footage. Adjust the percentage field (highlighted blue) as necessary.
