AVM System 750

Under Tile Waterproofing and Anti Fracture Membrane

The System 750® is a non-breathable and non reinforced (Very flexible) waterproofing membrane. It’s designed to waterproof surfaces which will have tile, brick, slate, pavers or other similar finished surfaces installed directly over the membrane. It’s ideally suited to waterproof shower pans, bathrooms, kitchens, ponds and other areas in continuously wet environments. It may also be used to waterproof out-door applications such as Balconies, Roof Decks, etc.

ICC ESR-3450ICC PMG 3450

SYSTEM COMPONENTS

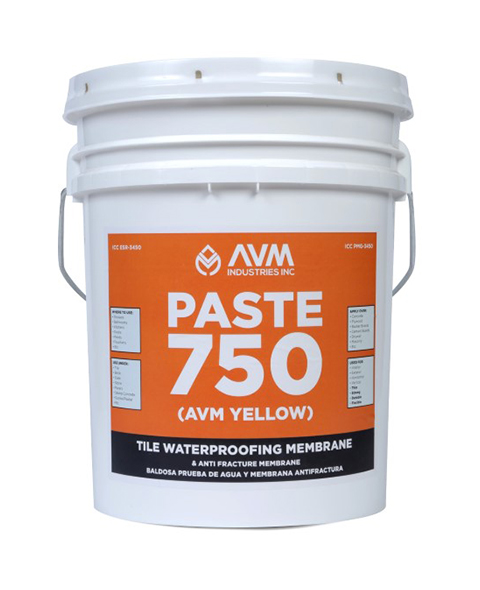

Paste 750

1, 3.5 & 5 Gal Bucket

Under tile waterproofing and anti fracture membrane

Primer 500

2 & 5 Gal Bucket

Blue water-based primer

Mat 800

6”x81’ | 40”x81’ | 40”x324 6”x100yrd | 12”x100yrd

Reinforcement mat for use with multiple AVM systems

OPTIONAL PROTECTIVE COATING

Aggregate 200

50lb | Grey or White

For use as optional protective coating

Additive 7400

2 & 5 Gal Bucket

Heavy duty, multi-purpose additive

GALLERY

MATERIAL CALCULATOR

  • How many square feet is your job?

  • SYSTEM COMPONENTS
  • WHAT YOU NEED
  • AVM Primer 500

  • Gallons
  • Paste 750 (@40 Mils Dry)

  • Gallons
  • OPTIONAL PROTECTIVE COATING
  • AVM Aggregate 200 @ 1/16" thick

  • Bags
  • AVM Additive 7400/7700 (1.25 Gal/bag)

  • Gallons
  • WANT TO SAVE A COPY?

Refer to page 2 of “Specifications Sheet” (in pdf) for available packaging sizes
This is an estimating tool only. Actual quantities needed may vary by job conditions and other factors.
Additional components/materials not listed here might be needed.
For additional guidance, contact our sales staff at 818-888-0050
AVM reserves the right to change any information on this document at any time witout notice.
