Aussie Tite 540h

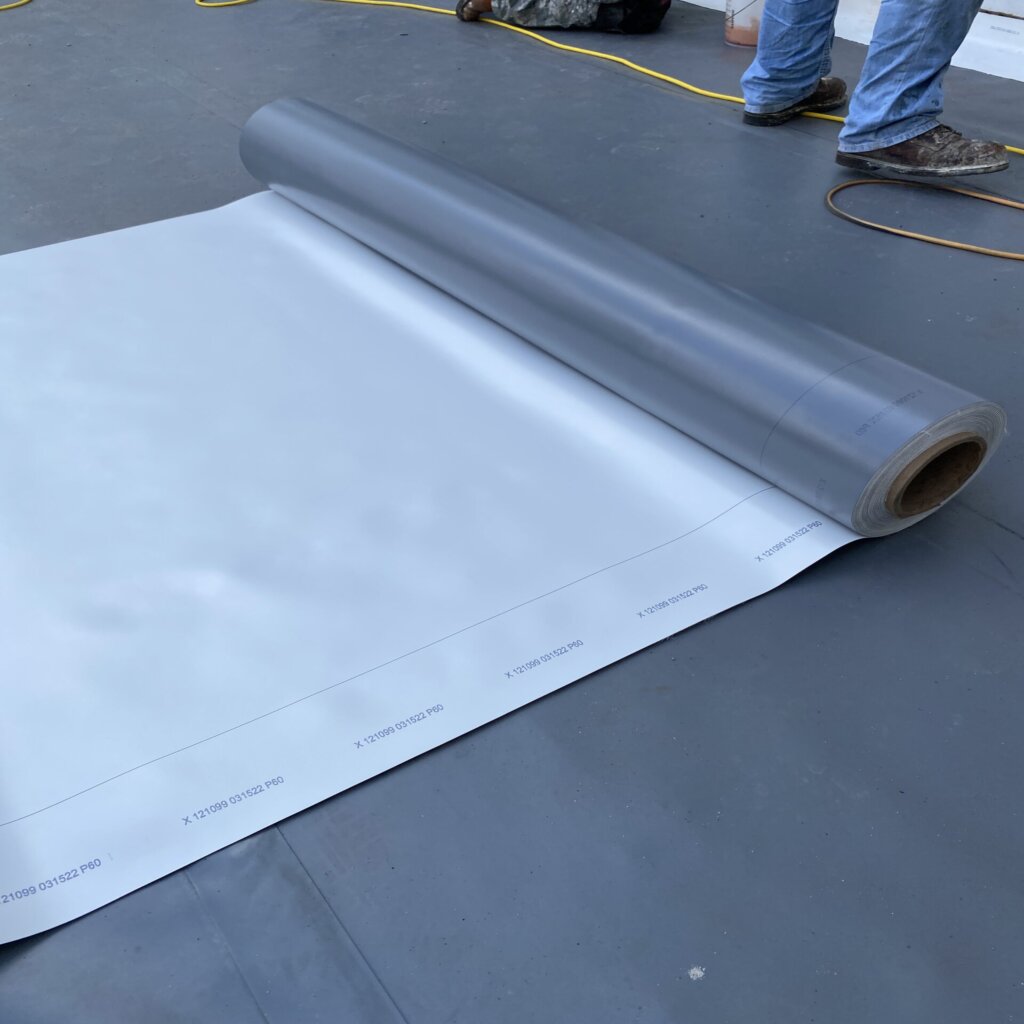

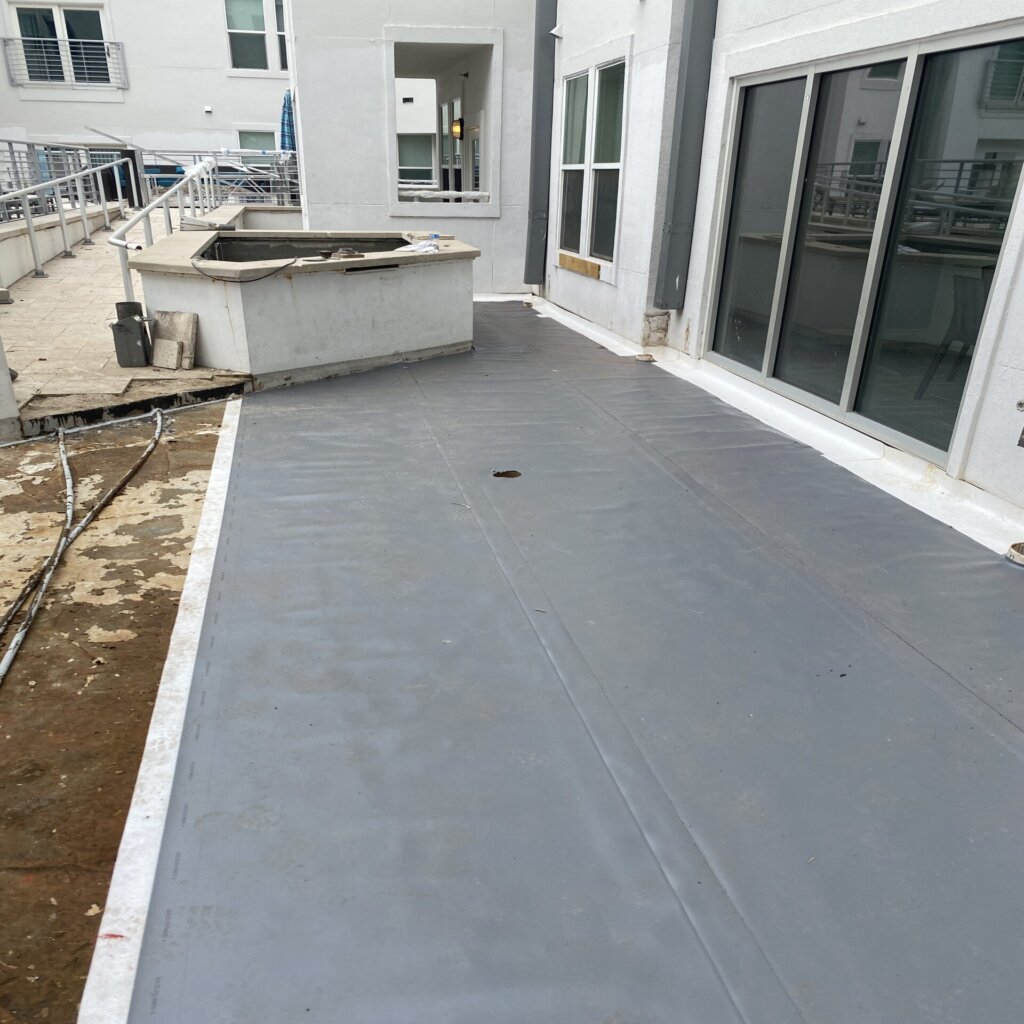

Aussie Tite 540

Dual PVC and Reactive Polymer Fleece Waterproofing

The AVM Aussie Tite is a heavy-duty Dual System Waterproofing membrane that is comprised of a high strength 60 mil thermoplastic PVC (Polyvinyl Chloride) with DuPont Elvaloyâ KEE that is reinforced with an adhered Reactive Polymer Fleece (RPF) layer that activates when it comes in contact with water.

SYSTEM COMPONENTS

Aussie Flash R 540 60 Mil Reinforced Thermoplastic Flashing

Aussie Flash R 540

60 Mil Reinforced Thermoplastic Flashing

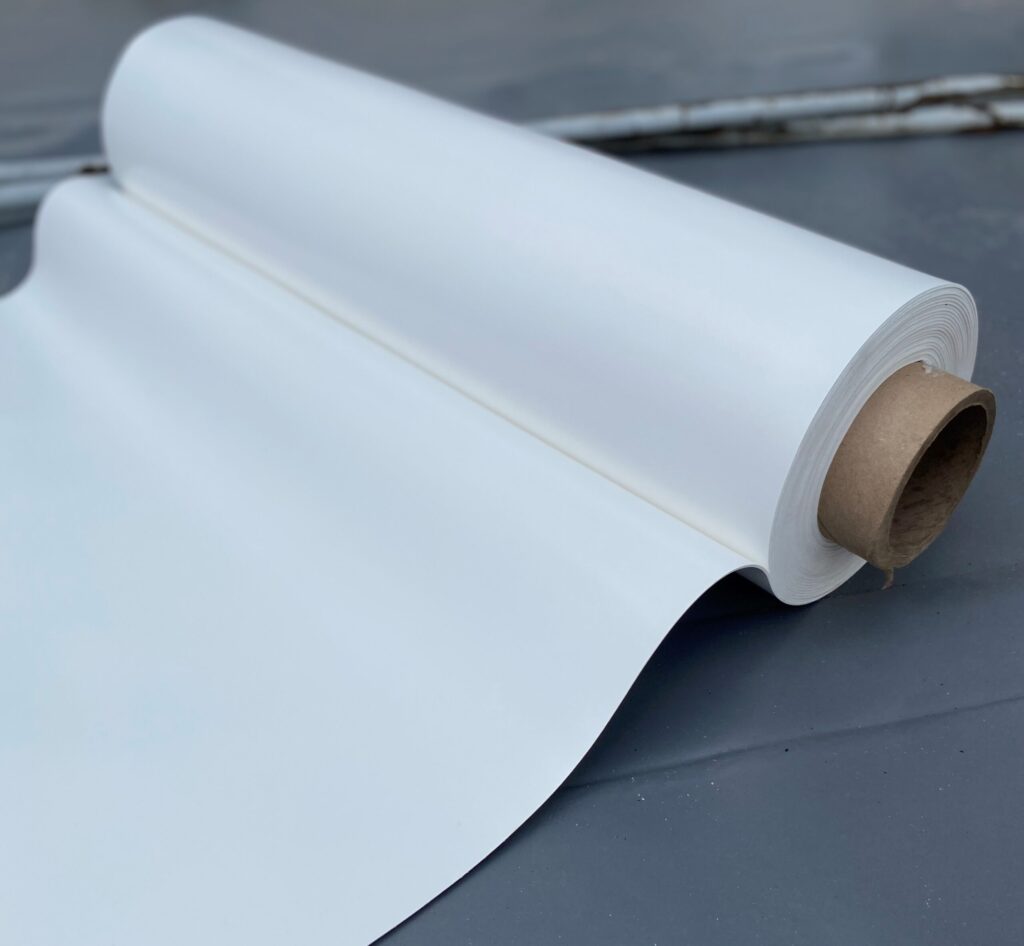

Aussie Flash DM 540 Non-Reinforced Detail Membrane

Aussie Flash DM 540

Non-Reinforced Detail Membrane

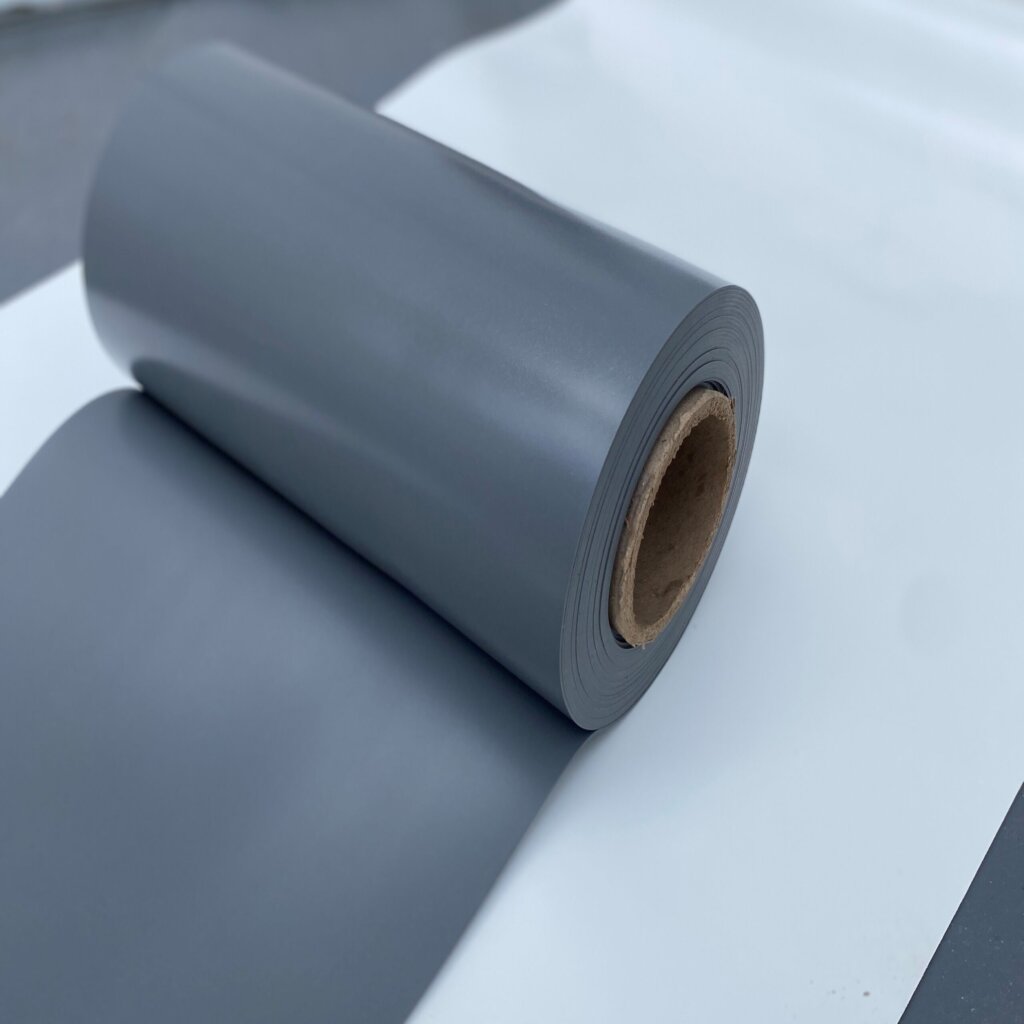

Aussie Flash NR 540 12” Non-Reinforced Flashing Membrane

Aussie Flash NR 540

12” Non-Reinforced Flashing Membrane

AVM Placeholder Logo

Aussie Fleece 540

Reactive Polymer Fleece Waterproofing

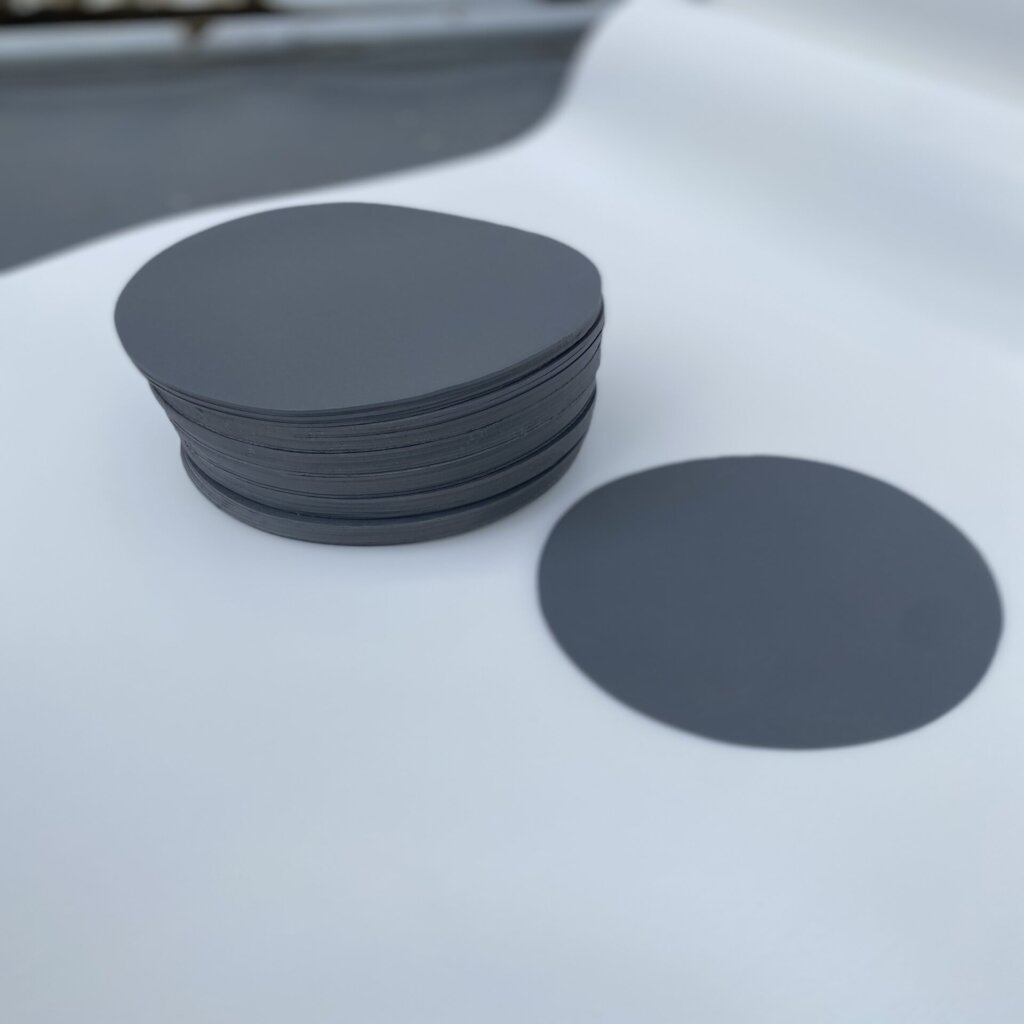

T-Joint Cover 540 4.5” Diameter Non-Reinforced Membrane

T-Joint Cover 540

4.5” Diameter Non-Reinforced Membrane

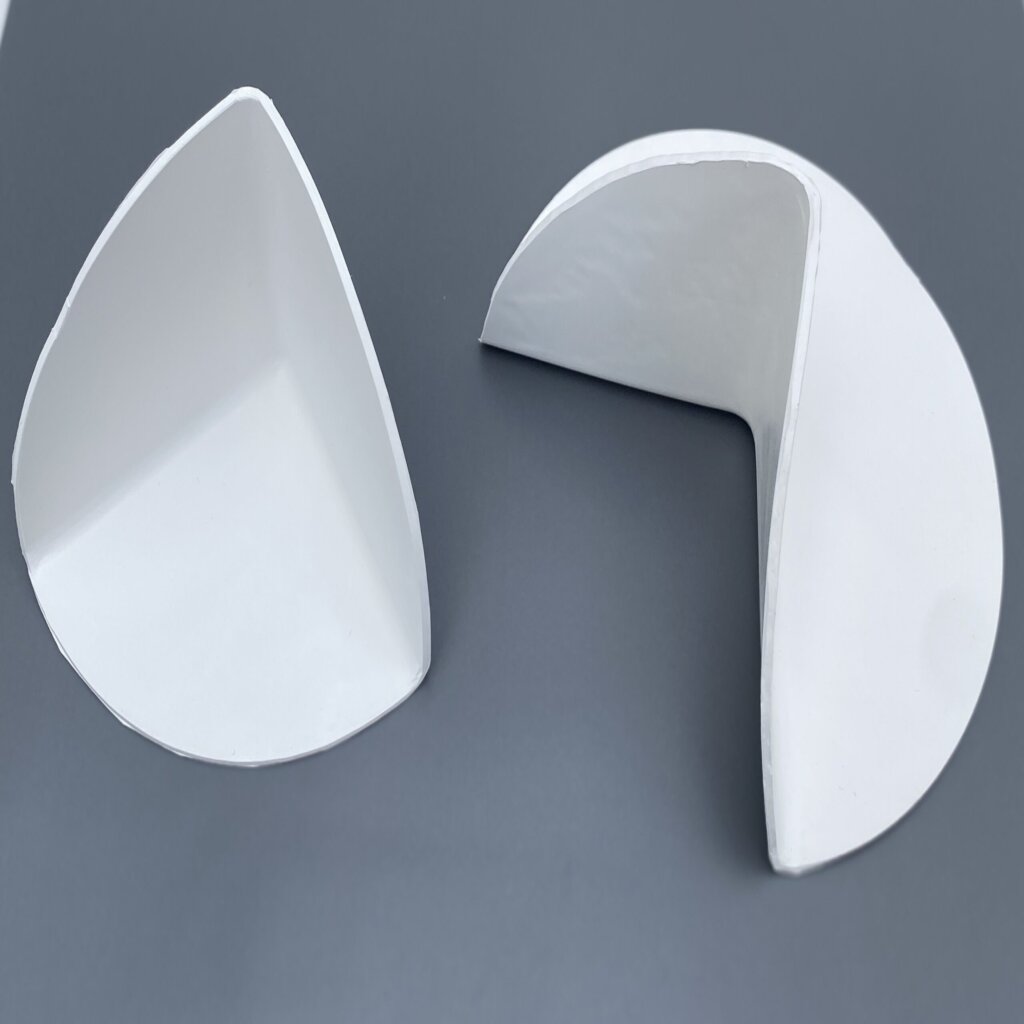

Inside & Outside Corners 540 Prefabricated Non-Reinforced Detail Membrane

Inside & Outside Corners 540

Prefabricated Non-Reinforced Detail Membrane

Drain Board 6000/6020 Prefabricated HDPE Drainage Composite

Drain Board 6000/6020

4'x50' | 8’x50’

Provides protection and drainage management

Drain Board 9000/9020/9080 Prefabricated HDPE Drainage Composite

Drain Board 9000/9020/9080

4'x50' | 8’x50’

Provides protection and drainage management

ARCHITECTURAL DETAILS

Aussie Tite 540

0540-1100 Pavers on Setting Bed (DWG) (PDF)
0540-1110 Split Slab Section (DWG) (PDF)
0540-1200 Deck to Wall Transition with Flashing (DWG) (PDF)
0540-1201 Deck to Wall Transition Over Existing Waterproofing – Option 1 (DWG) (PDF)
0540-1210 Inside Corner_Deck to Wall (DWG) (PDF)
0540-1220 Outside Corner_Deck to Wall (DWG) (PDF)
0540-1400 Two-Stage Drain in Split Slab (DWG) (PDF)

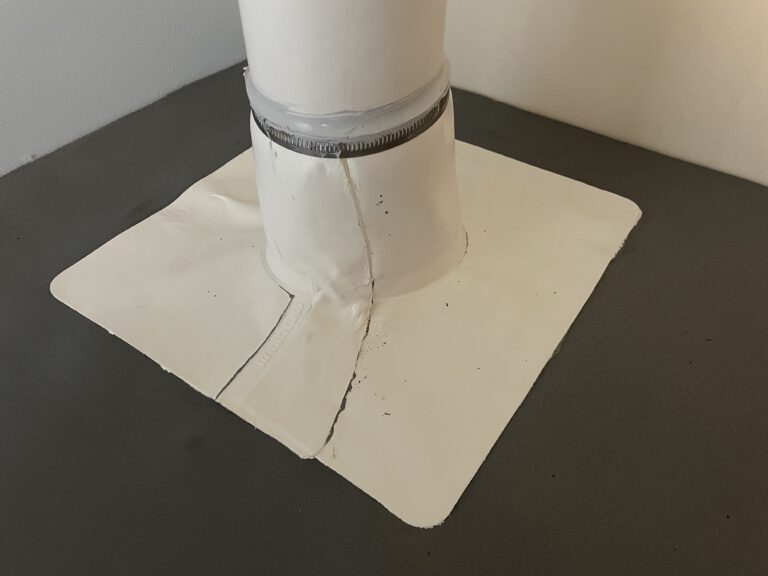

0540-1460 Typical Pipe Penetration (DWG) (PDF)
0540-1462 Multiple Pipe Penetration (DWG) (PDF)
0540-1465 Pipe Penetration Option 2 (DWG) (PDF)
0540-1500 Typical Welded Overlap (DWG) (PDF)
0540-1505 Butt End Welded Overlap (DWG) (PDF)
0540-1510 Butt End Welded Overlap with T-Patch (DWG) (PDF)
