AVM SYSTEM 100 FOREVERCOAT

AVM System 100 Forevercoat

Elasto Fiberdeck Waterbased Acrylic

The Forevercoat® 100 system is a traffic bearing, roof and walking deck waterproofing system with a “Maintenance Free” wear surface. The Forevercoat® 100 system has a class A roofing classification and a 1 hour fire rating.

AVM System 100 Forevercoat

Elasto Fiberdeck Waterbased Acrylic

The Forevercoat® 100 system is a traffic bearing, roof and walking deck waterproofing system with a “Maintenance Free” wear surface. The Forevercoat® 100 system has a class A roofing classification and a 1 hour fire rating.

SYSTEM COMPONENTS

primer-100
Primer 1002 & 5 Gal Bucket

Suitable for wood, concrete
and sheet metel substrates

base-resin-100

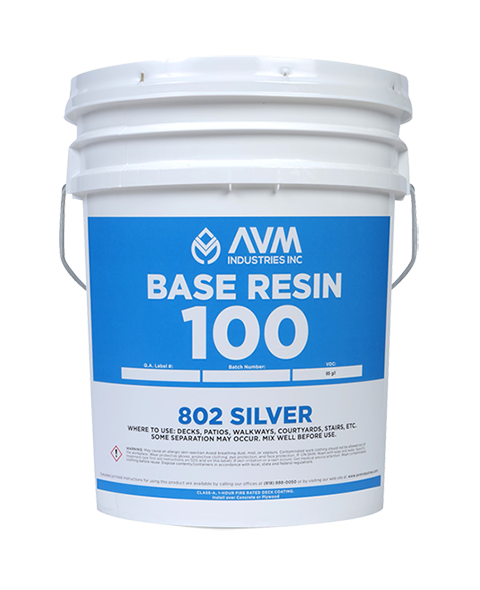

Base Resin 1002 & 5 Gal Bucket

Integral color acrylic base
coat resin membrane

top-coat-sealer-4100
Top Coat Sealer 41002 & 5 Gal Bucket

Integral color for clear top
coat acrylic system sealer

arcipatch-5020
Arcipatch 50202 & 5 Gal Bucket

Application at joints, voids,
cracks and wood knots

aggregate-200-2
Aggregate 20050lb | Grey or White

For use as optional
protective coating

aggregate-400
Aggregate 40050lb | Grey or White

For use in sloping
and brown coats

additive-7400-2
Additive 74002 & 5 Gal Bucket

Heavy duty,
multi-purpose additive

mat-100-fiberglass
Mat 100200 sq/ft or 1750 sq/feet rolls

Multi directional chopped
strand fiberglass mat

OPTIONAL COMPONENTS

mat800
Mat 8006”x81’ | 40”x81’ | 40”x324 6”x100yrd | 12”x100yrd

Reinforcement mat for use
with multiple AVM systems

epoxy-primer-400
Epoxy Primer 4001.25 Gal Kit | 5 Gal Kit

Epoxy primer

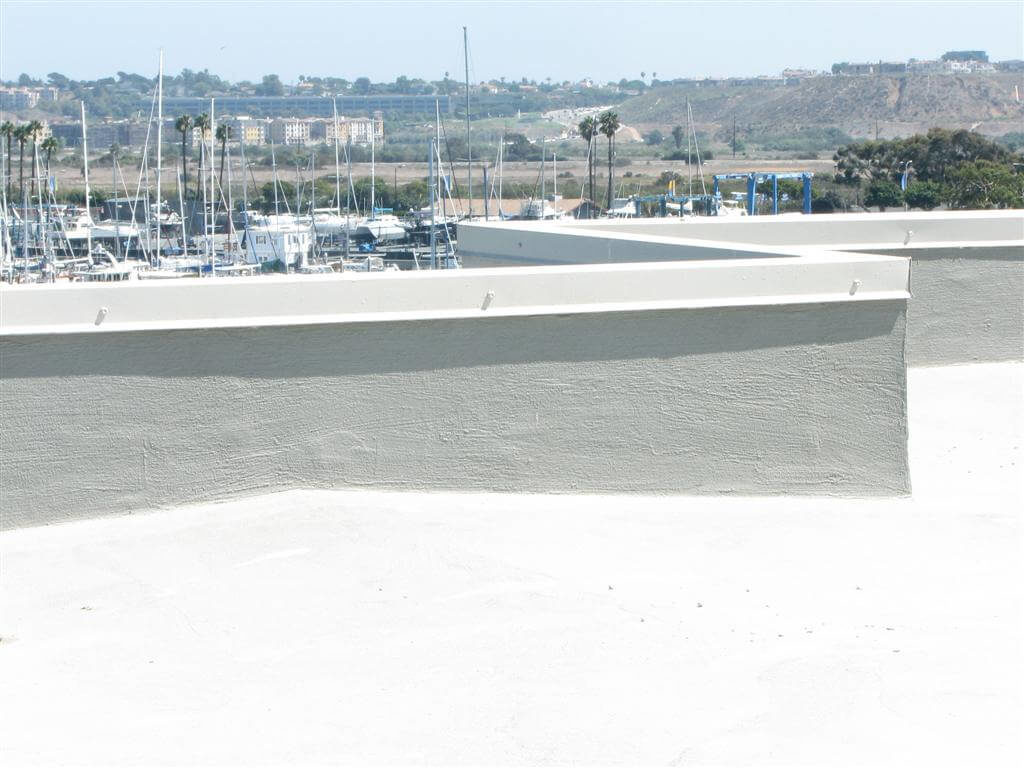

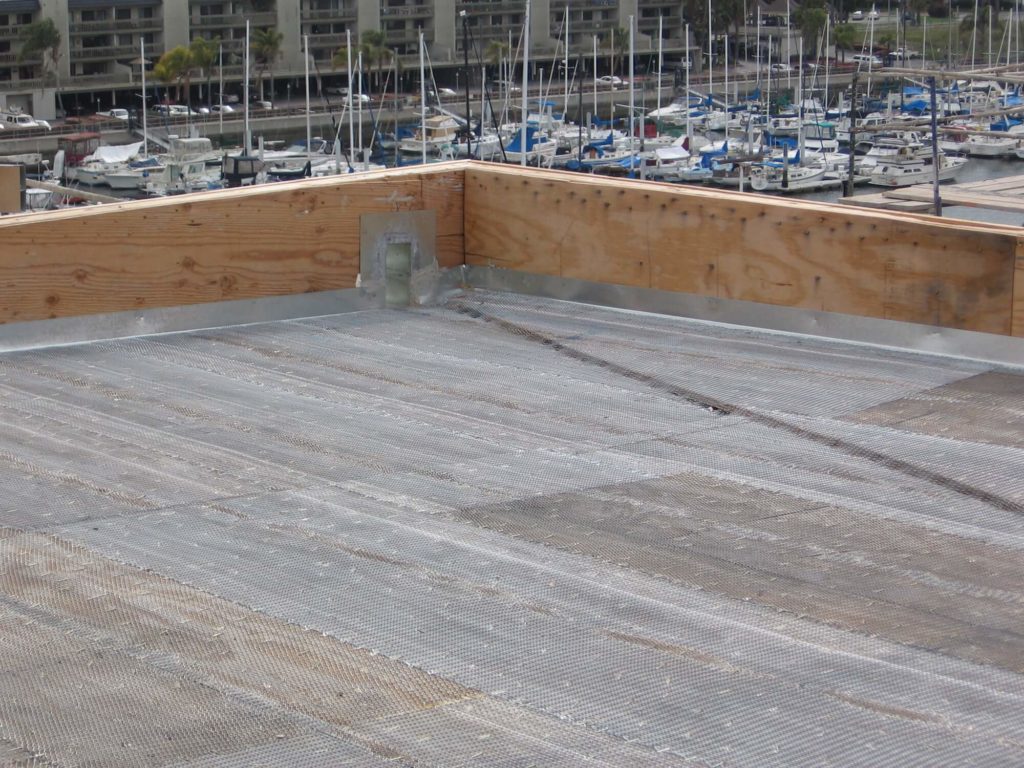

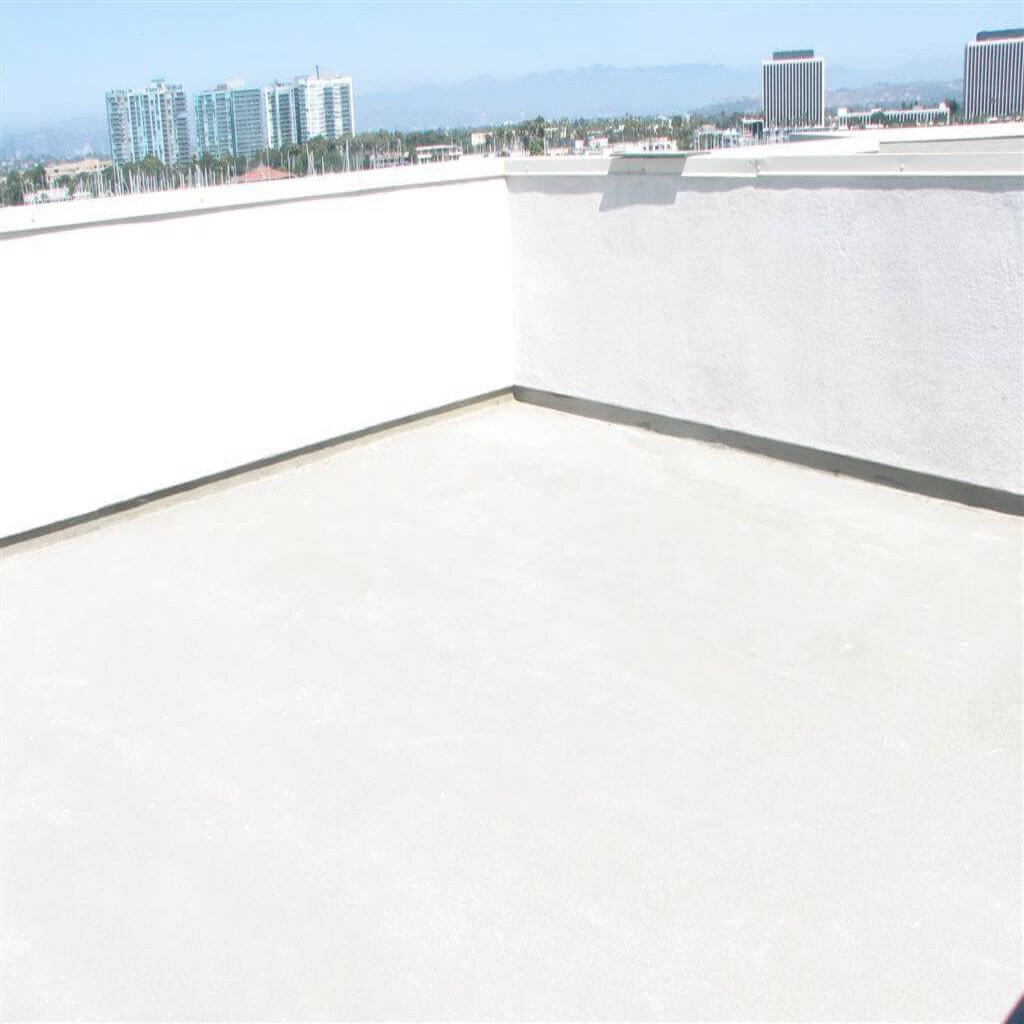

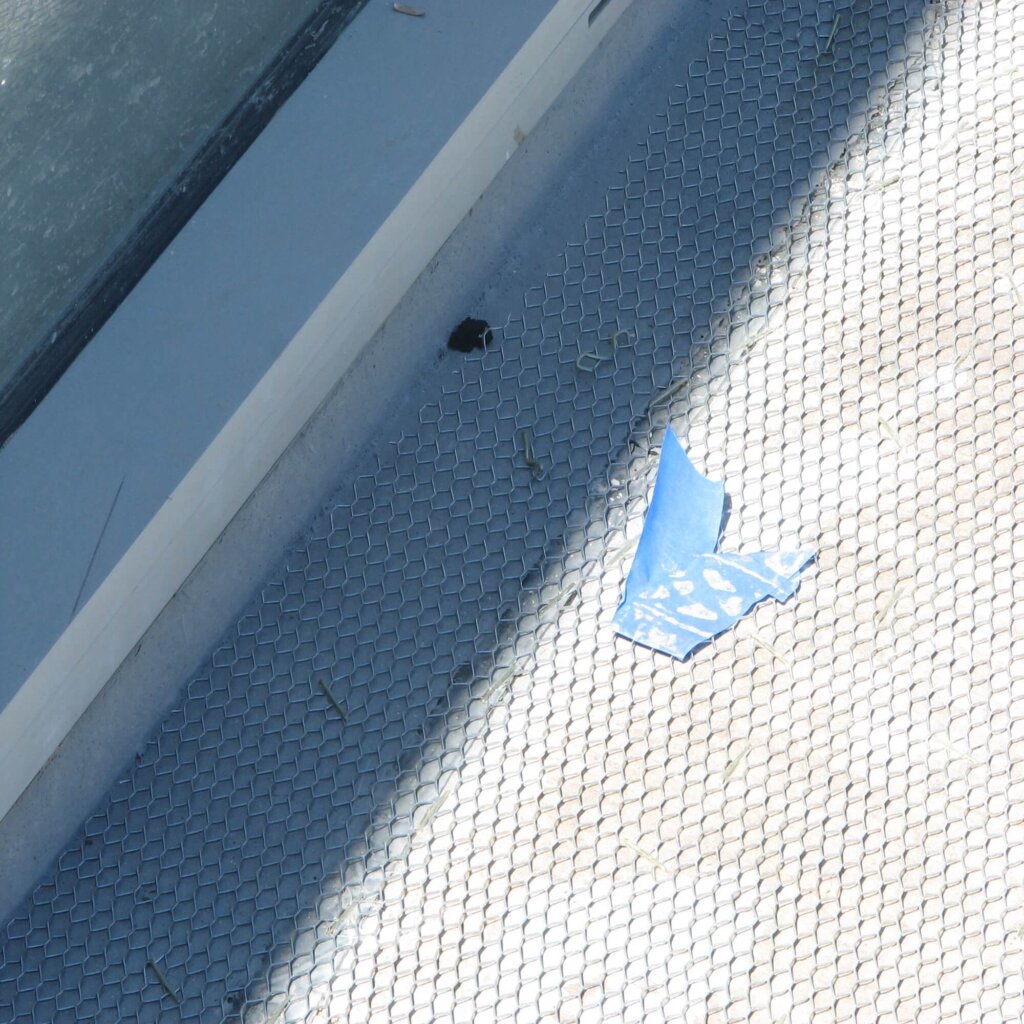

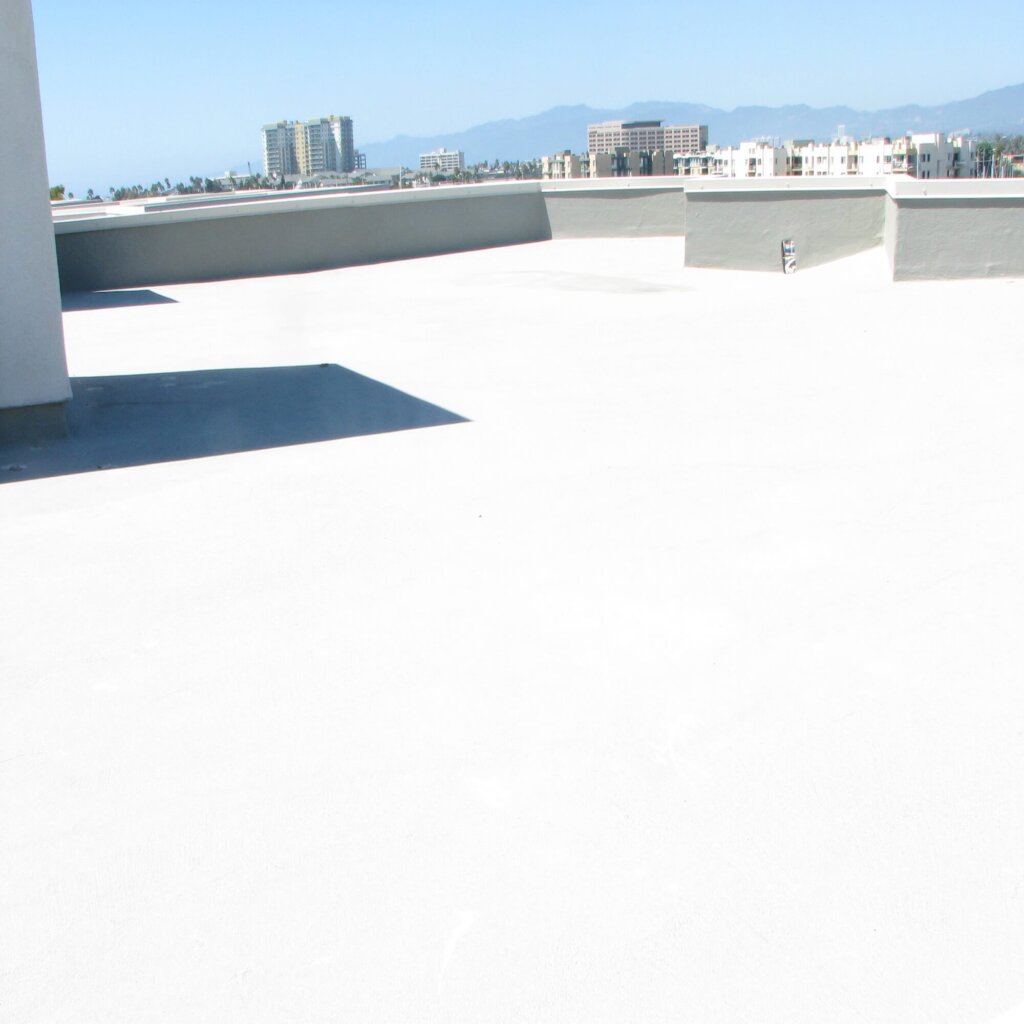

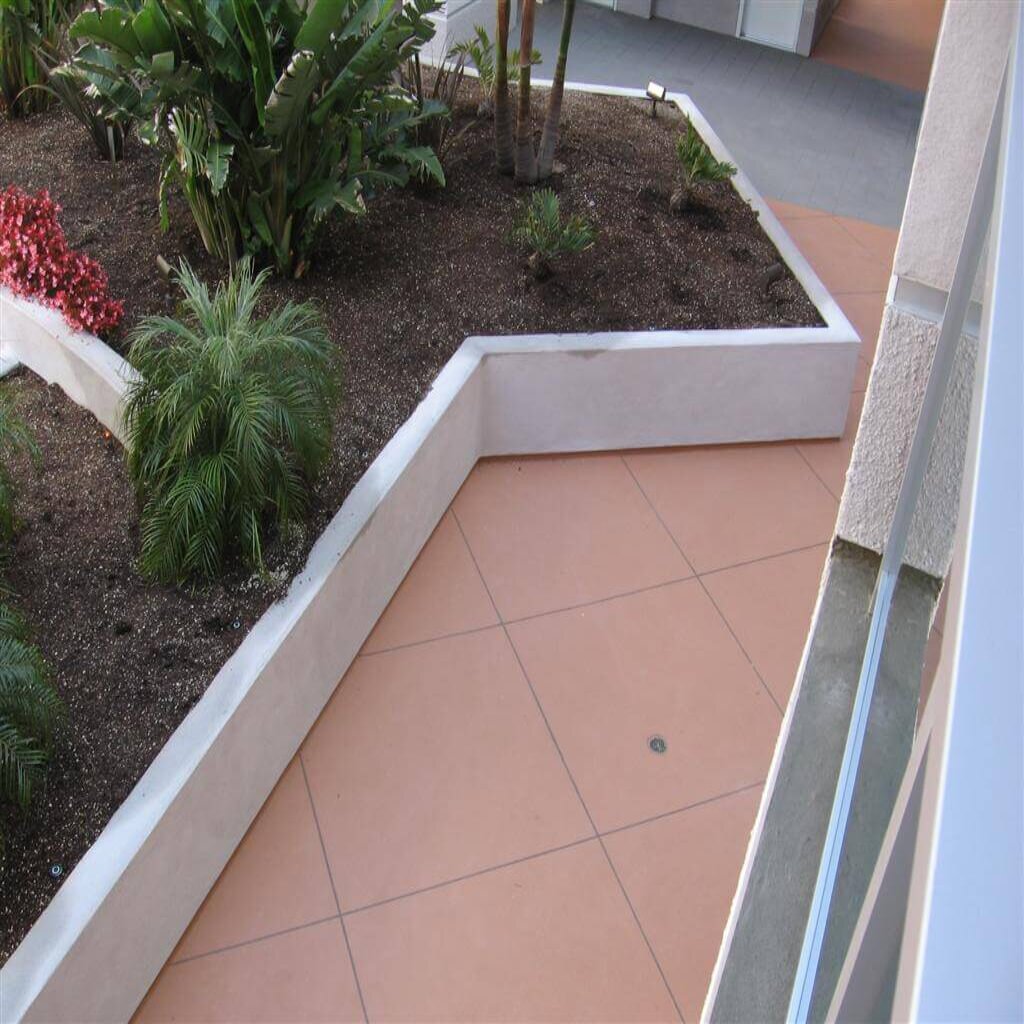

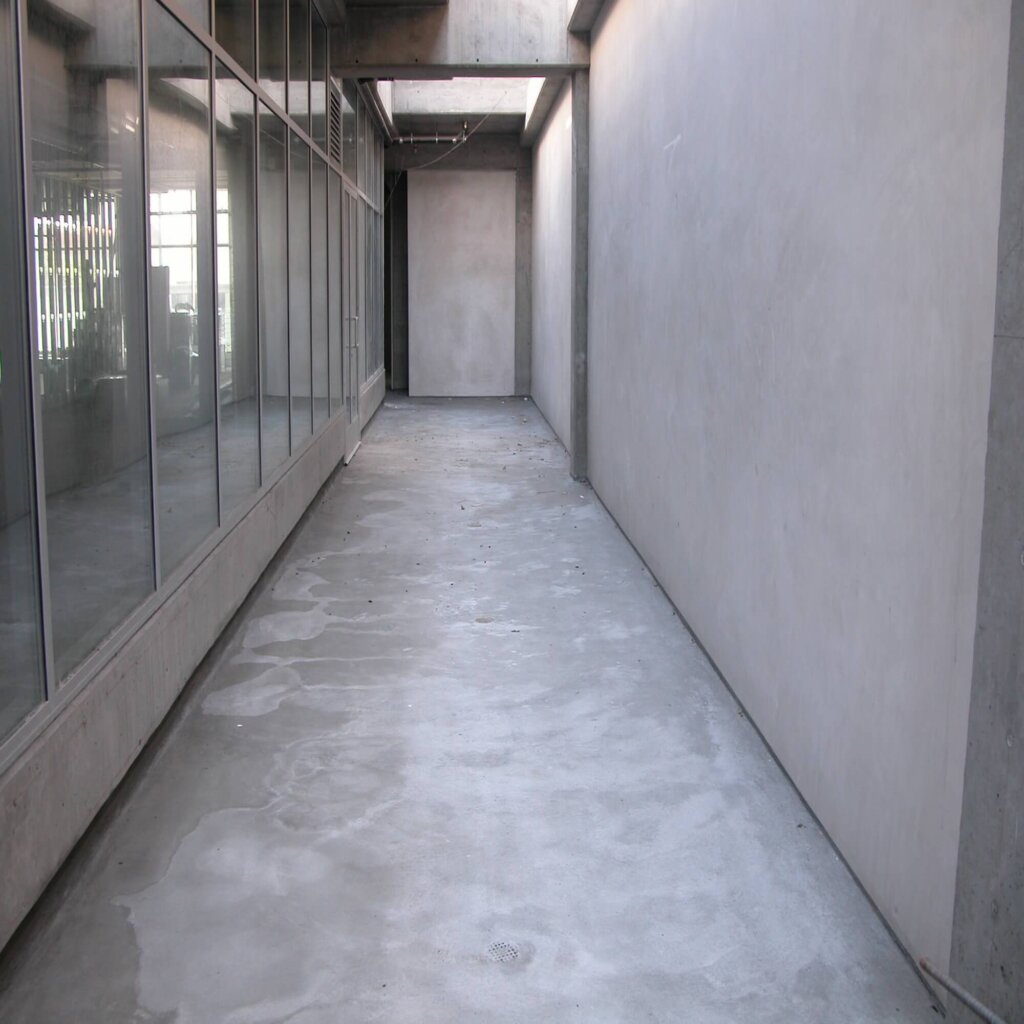

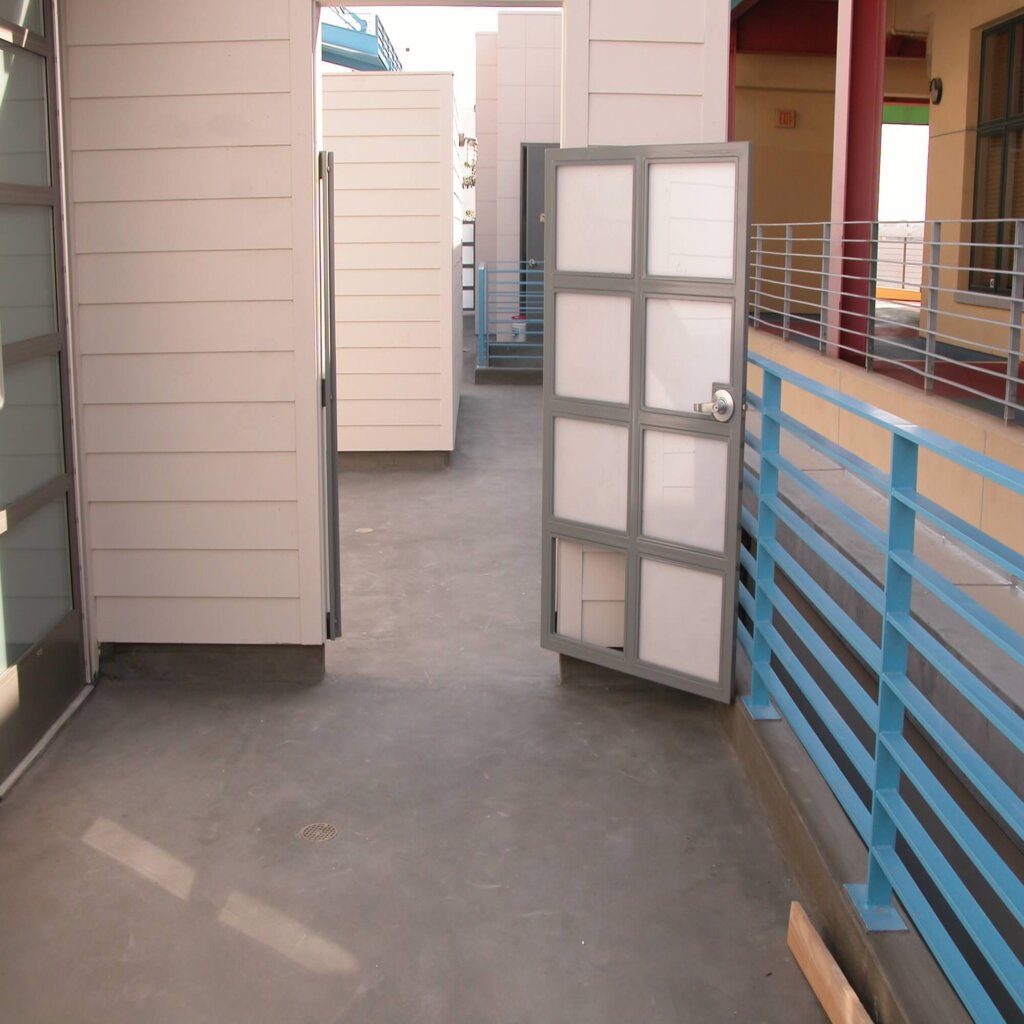

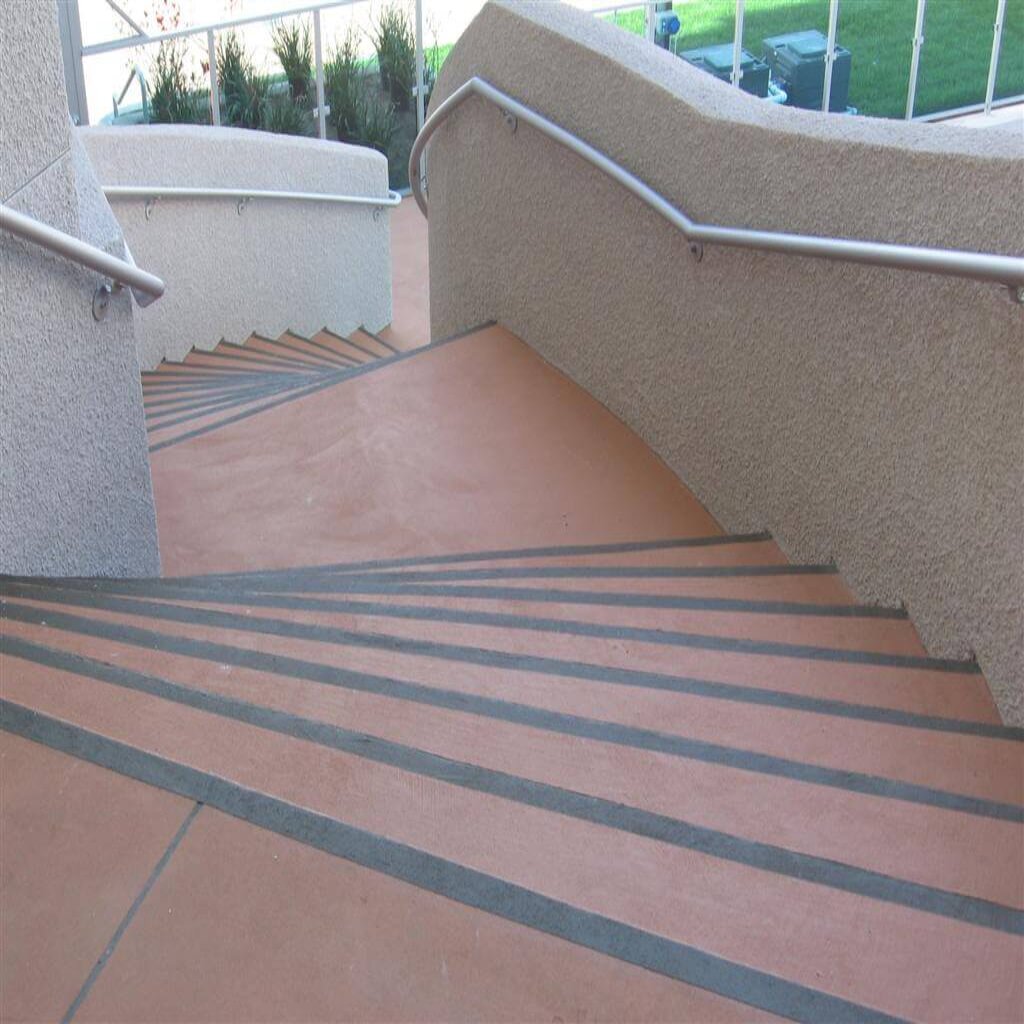

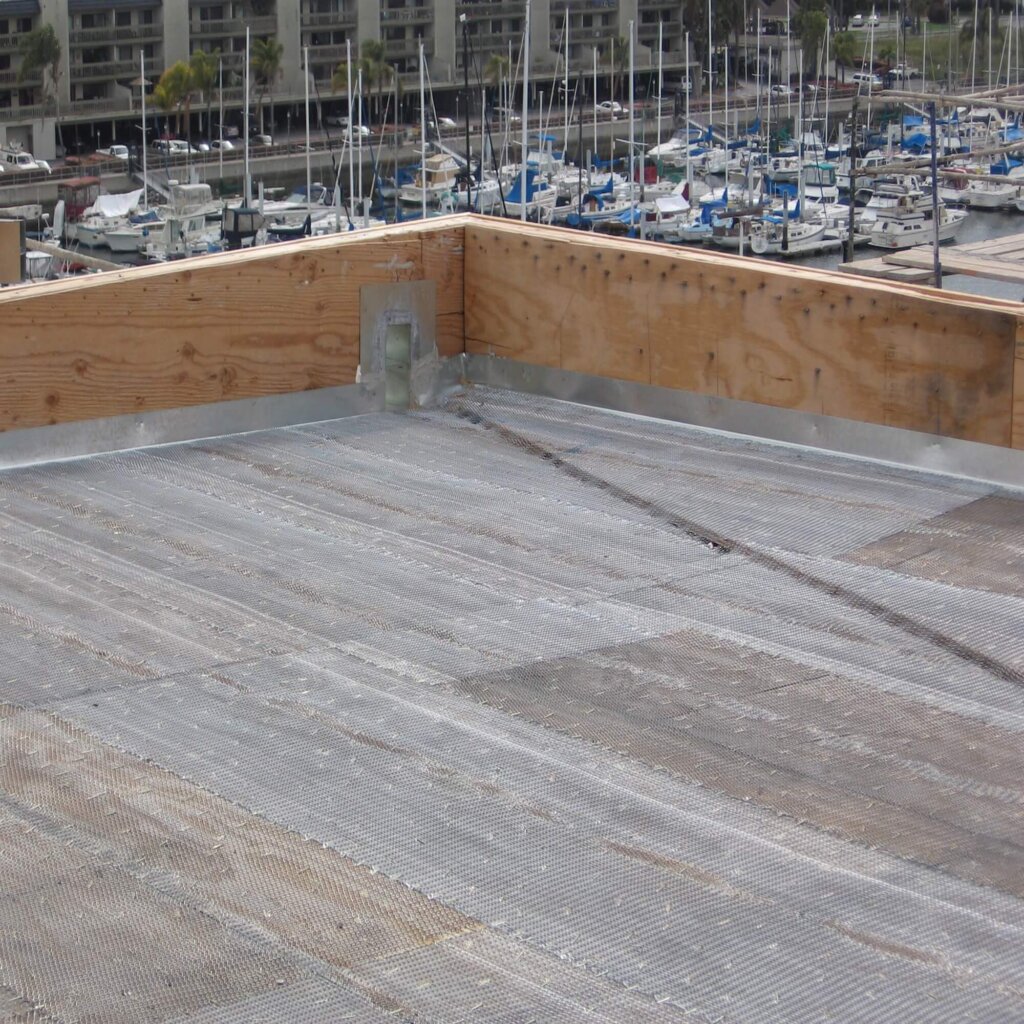

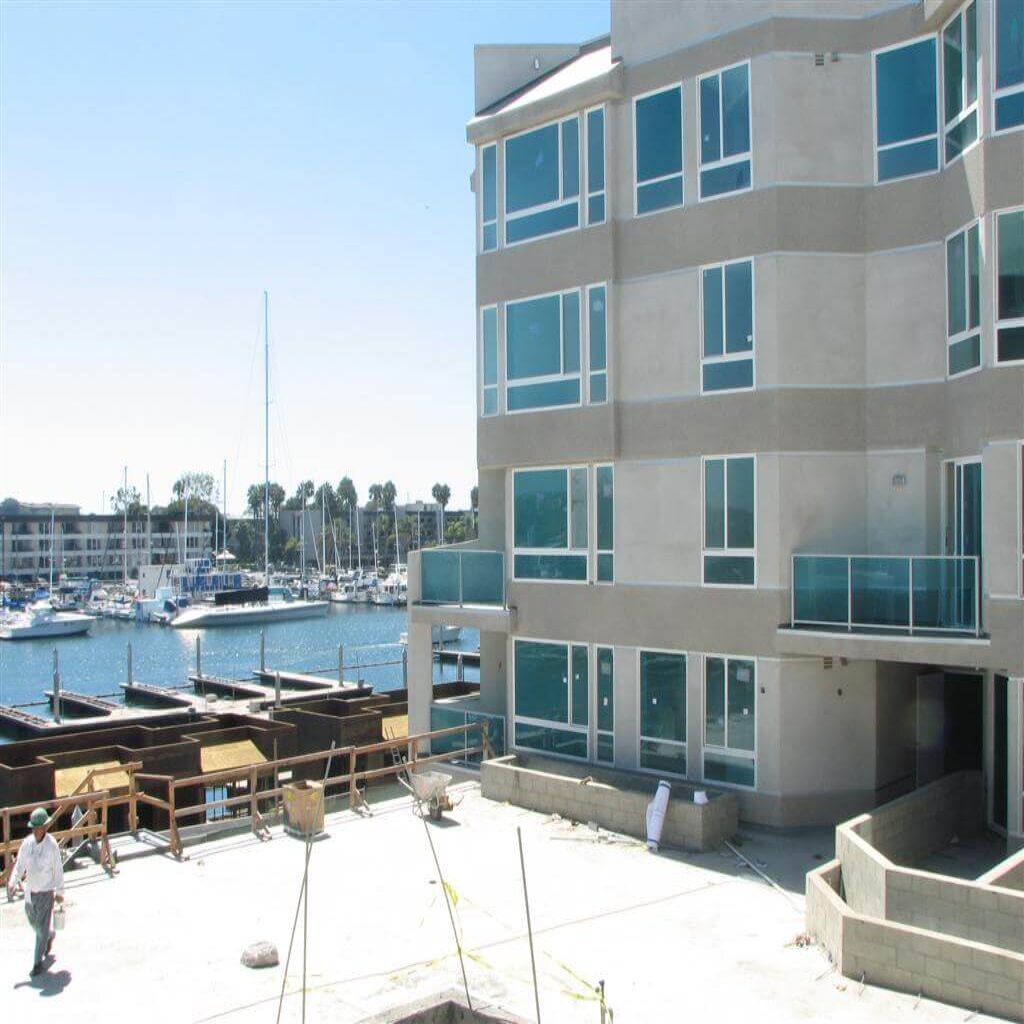

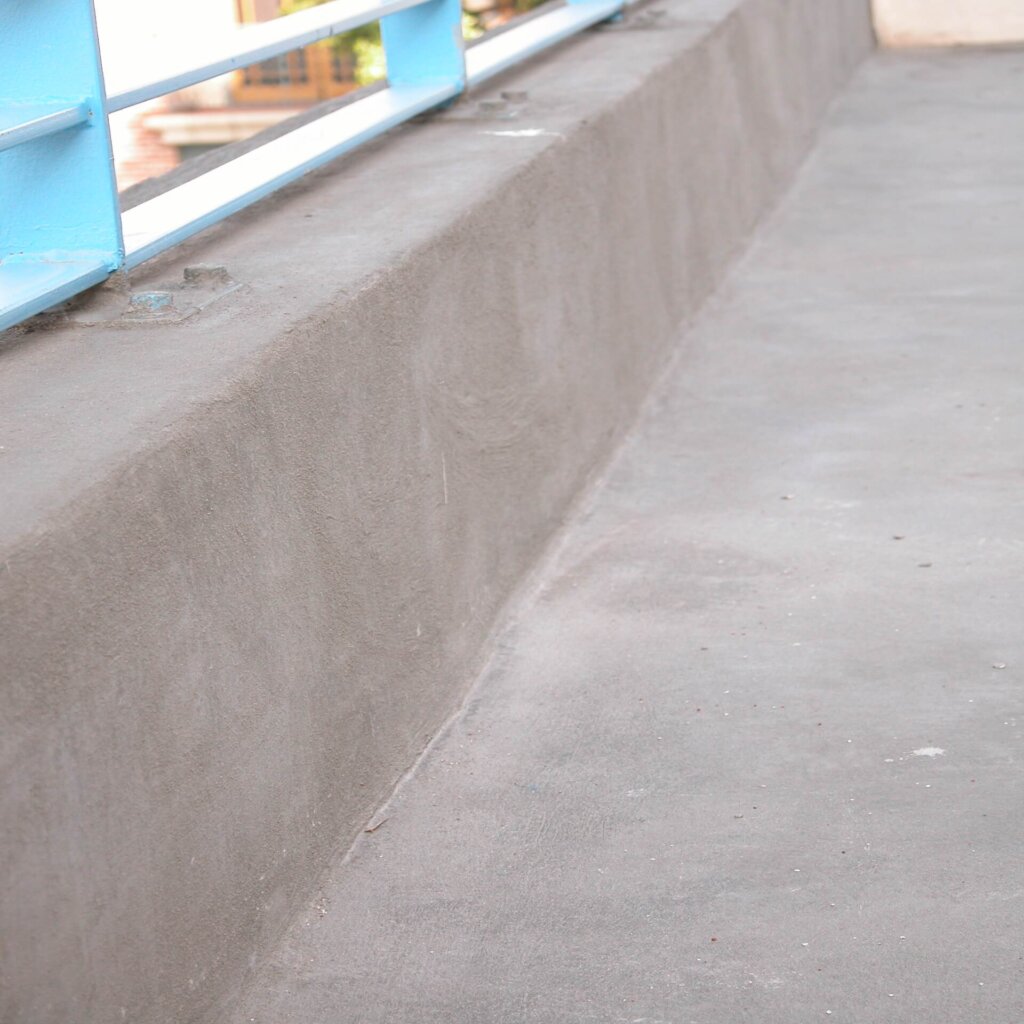

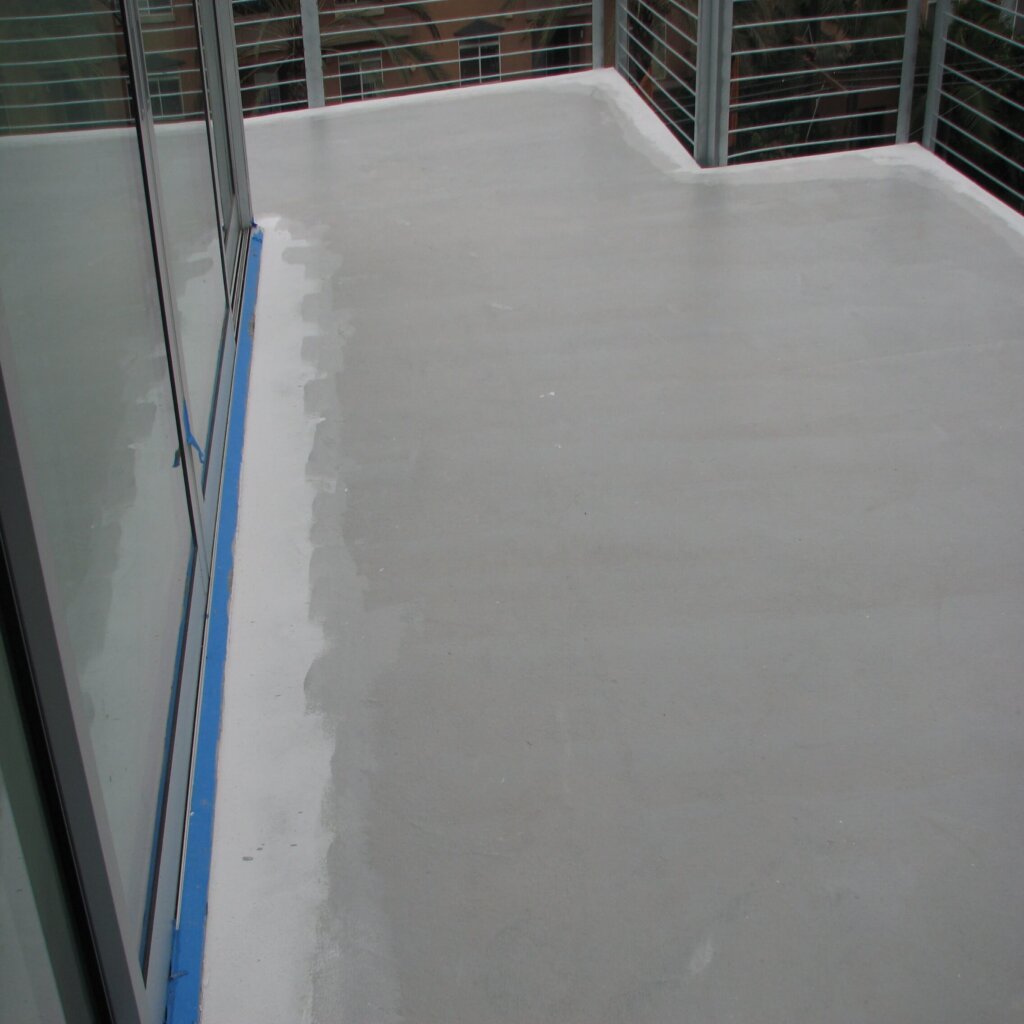

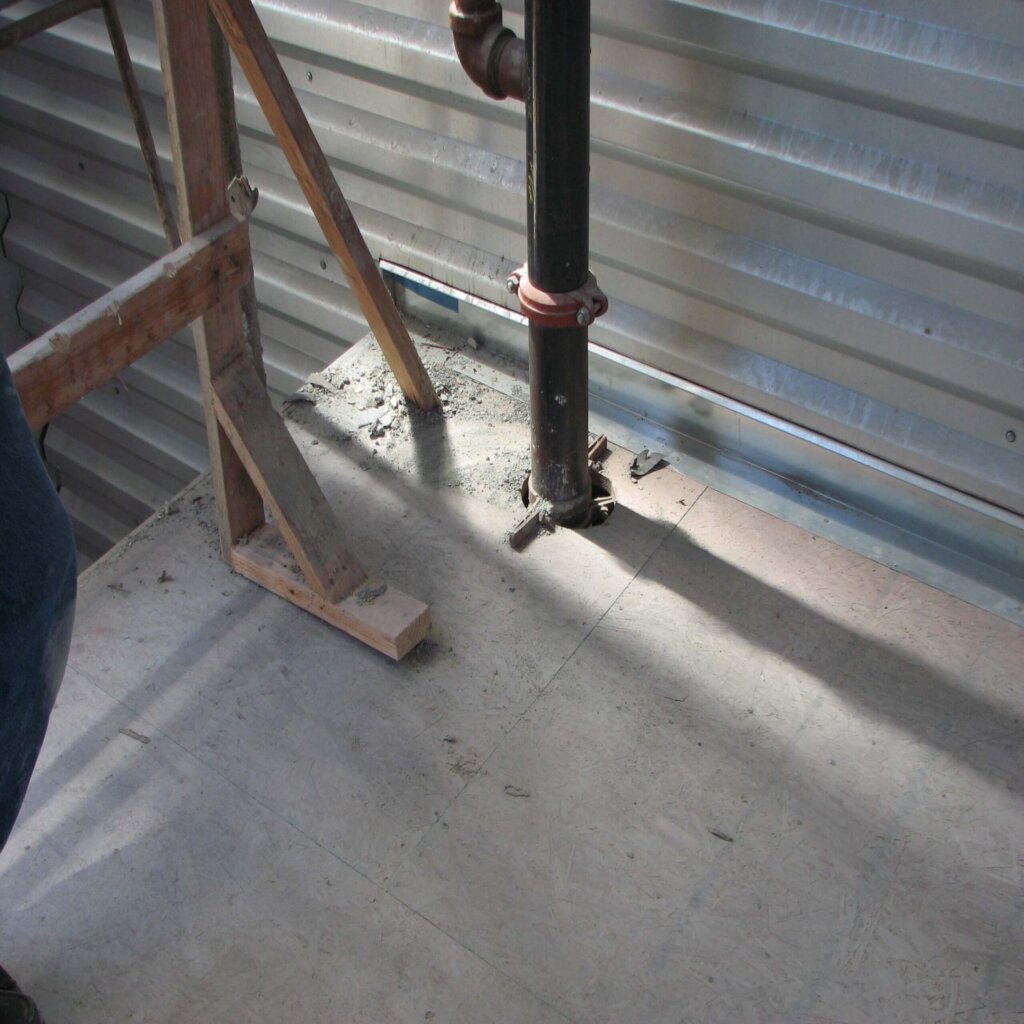

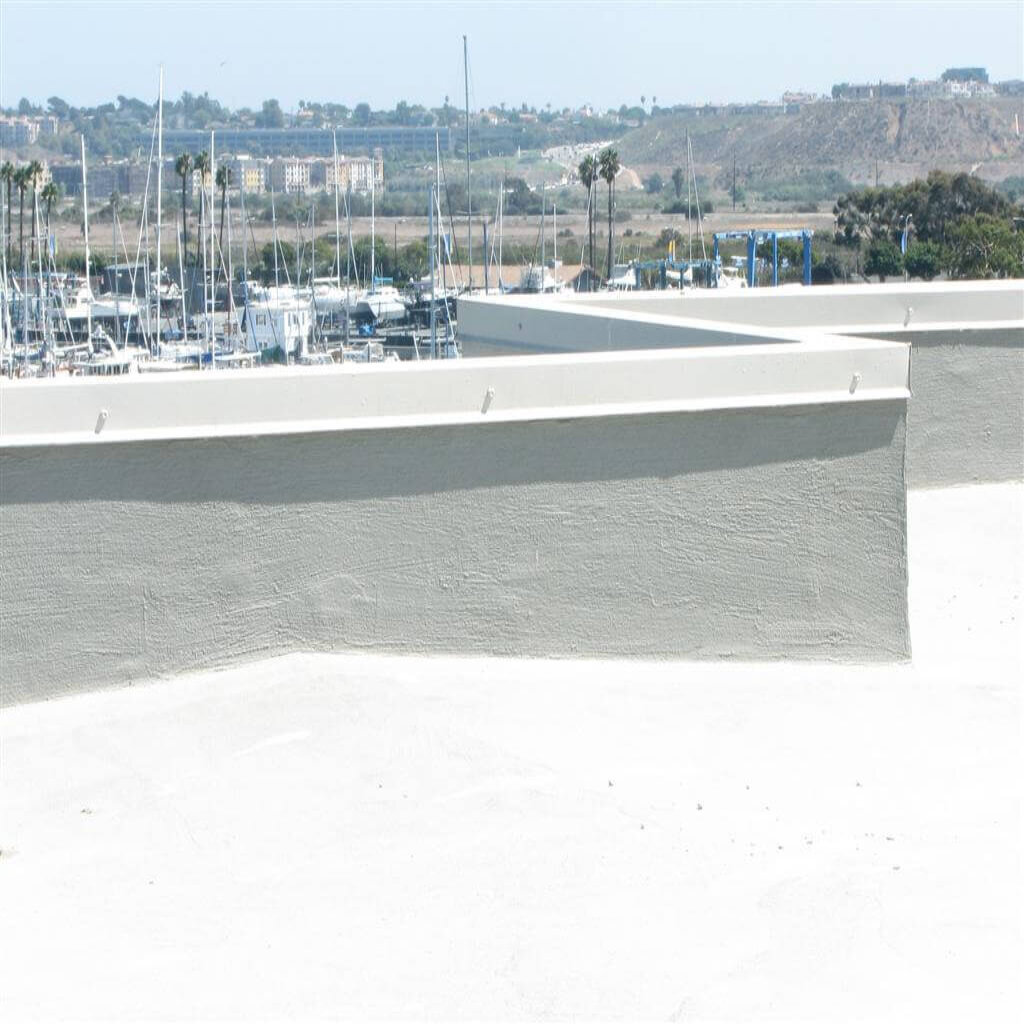

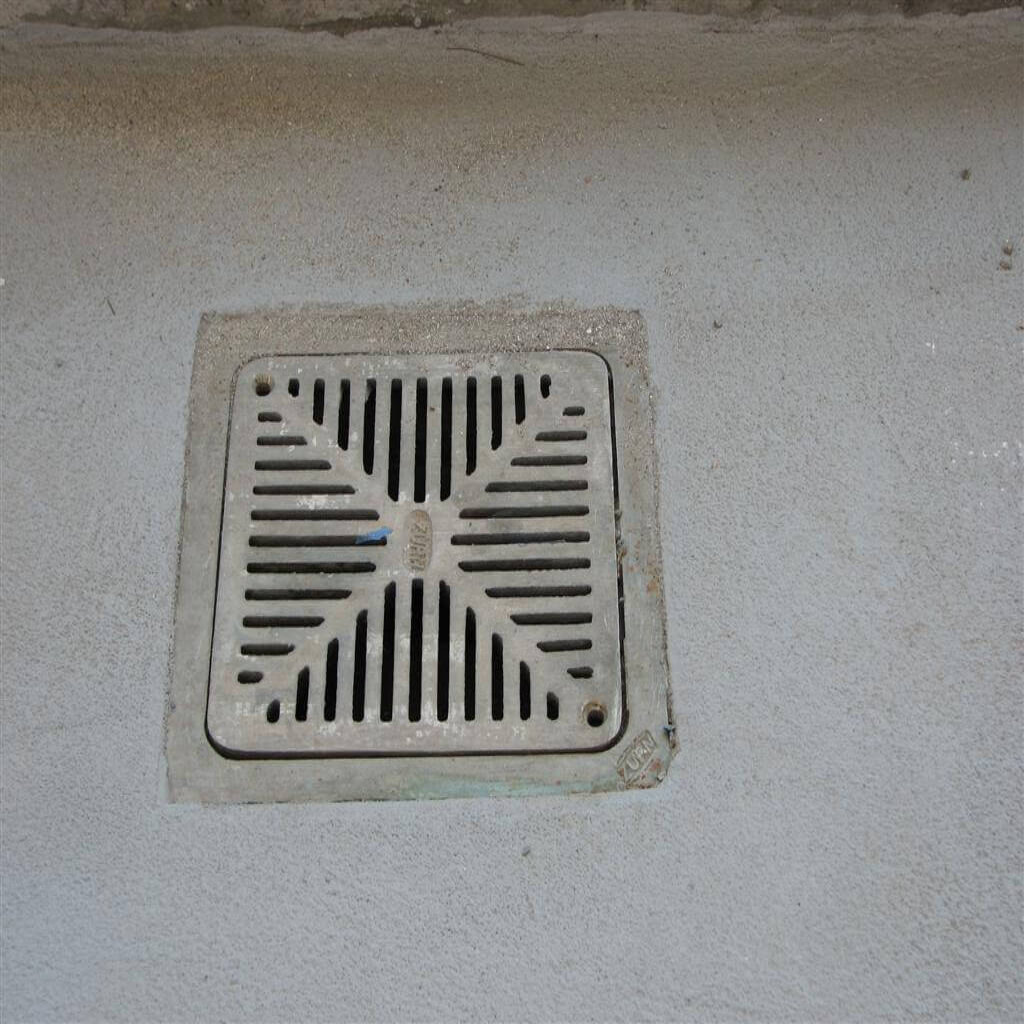

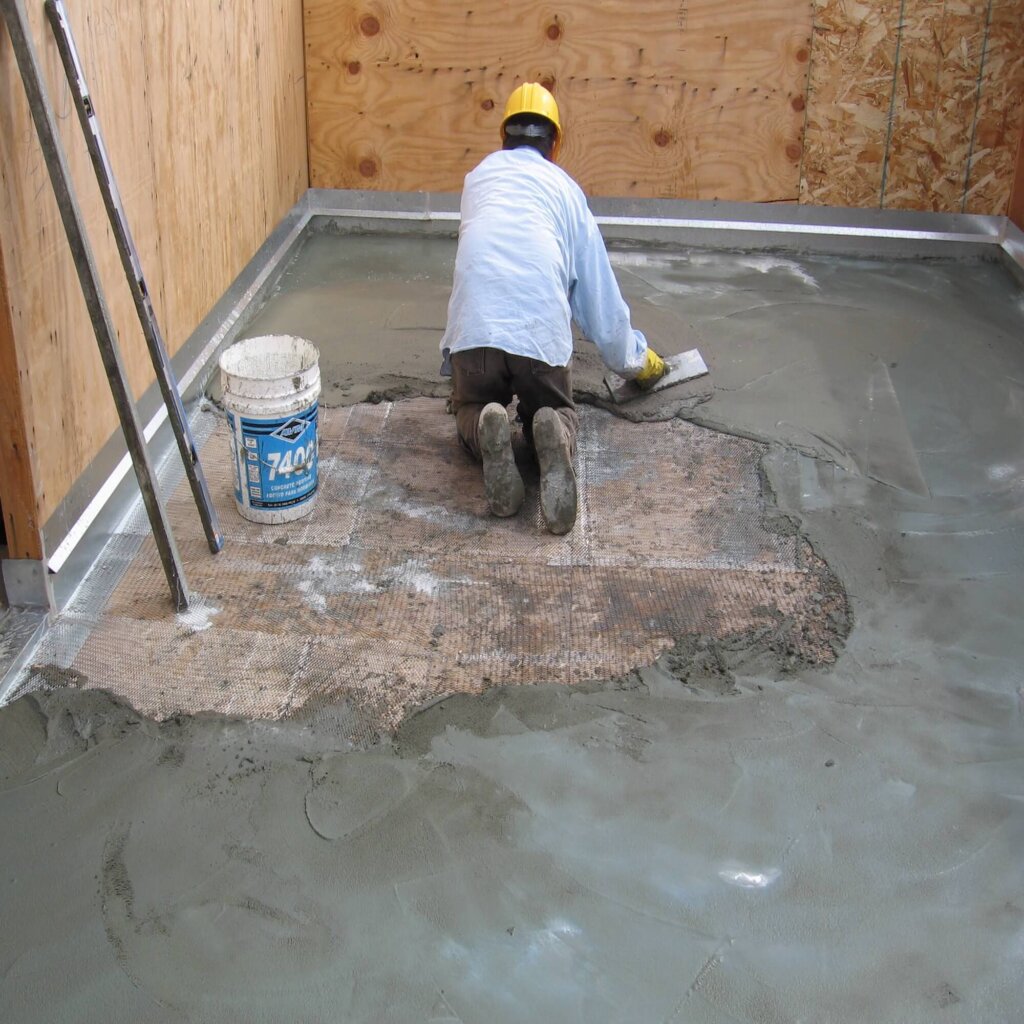

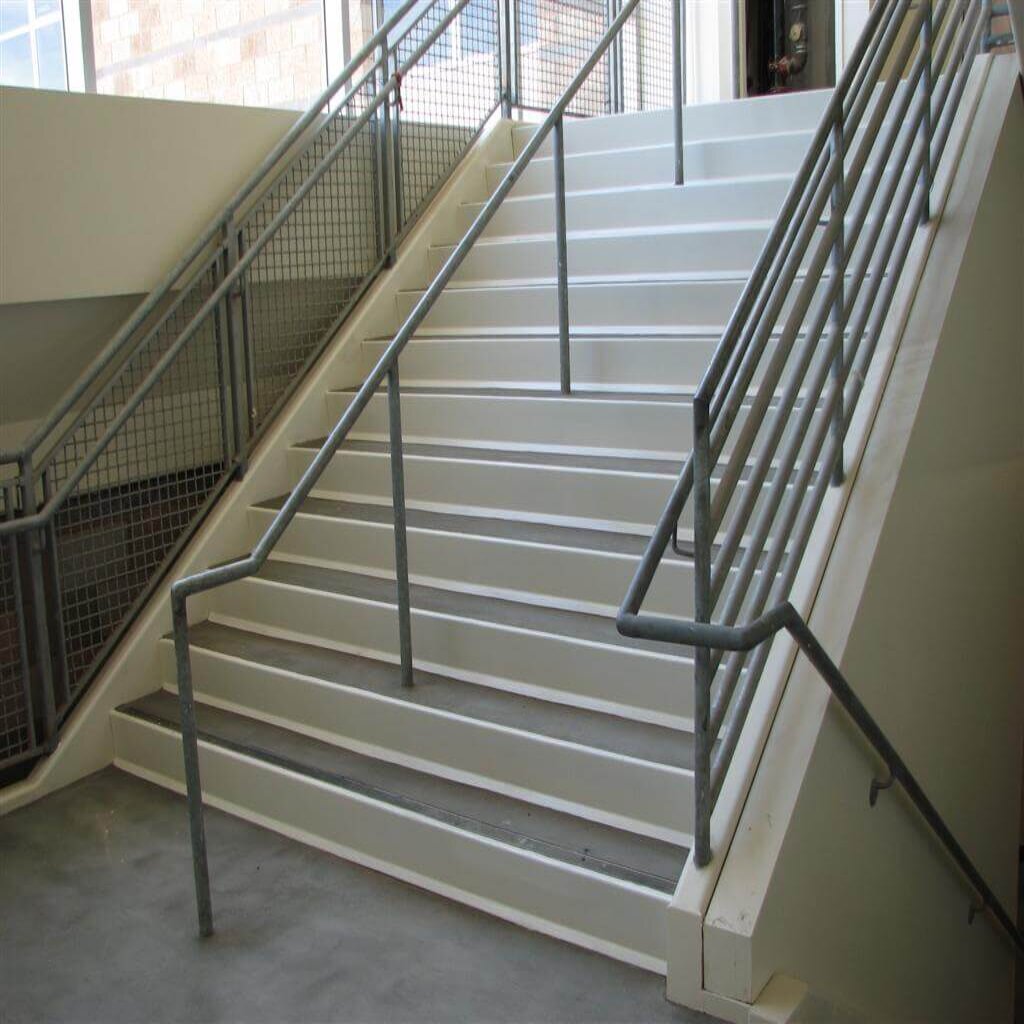

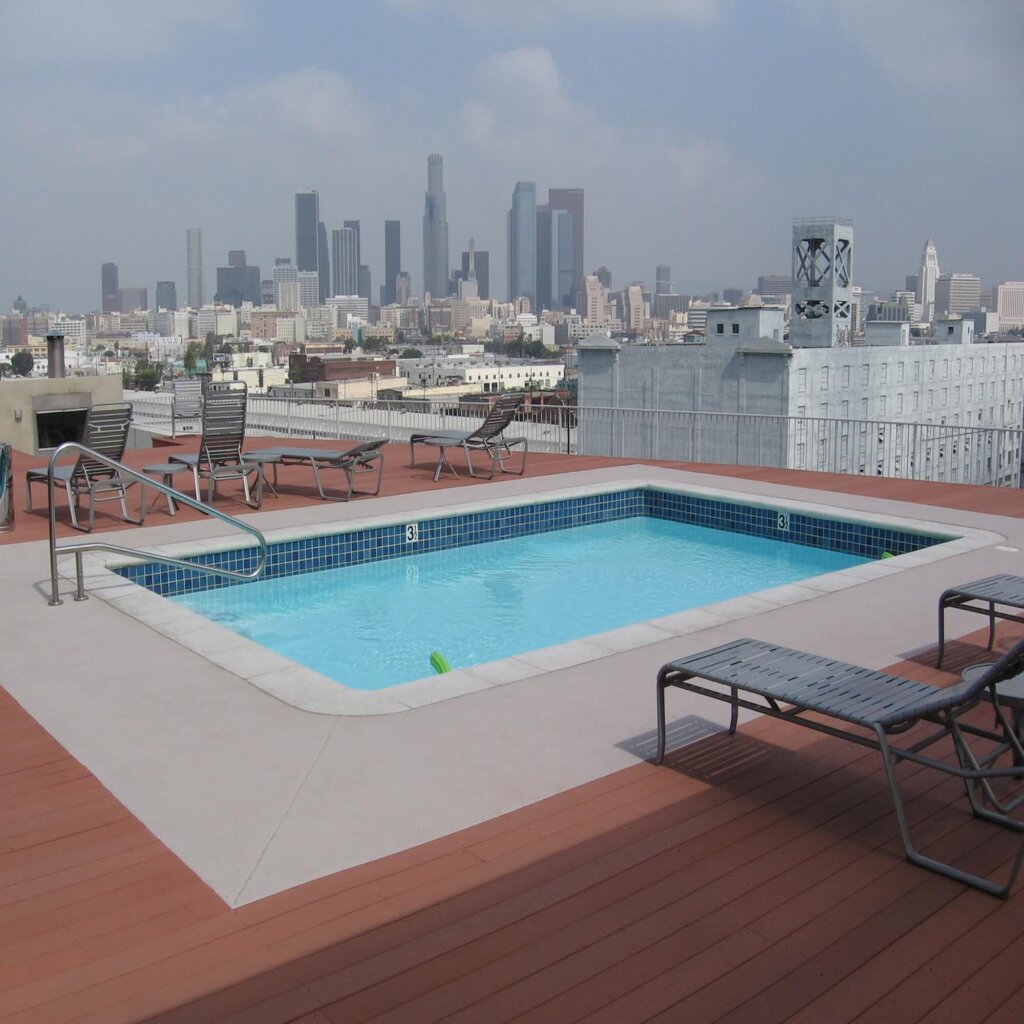

GALLERY

GALLERY

MATERIAL CALCULATOR

Concrete
  • How many square feet is your job?

  • SYSTEM COMPONENTS
  • WHAT YOU NEED
  • AVM Primer 100

  • Gallons
  • Base 100

  • Gallons
  • AVM Aggregate 200 @ 1/8" thick

  • Bags
  • AVM Additive 7400/7700 (1.25 Gal/bag)

  • Gallons
  • Top Coat Sealer 4100/4150

  • Gallons
  • AVM Mat 100 (50" wide)

  • Rolls
  • or
  • AVM Mat 800 (40"x324')

  • Rolls
  • Acripatch 5020 *

  • Gallons
  • OPTIONAL COMPONENTS
  • AVM Mat 800 (12"x300')

  • L/F
  • AVM Mat 800 (6"x300')

  • L/F
  • WANT TO SAVE A COPY?

Refer to page 2 of “Specifications Sheet” (in pdf) for available packaging sizes
This is an estimating tool only. Actual quantities needed may vary by job conditions and other factors.
* Acripatch quantities could vary significantly based on the amount of prep needed, flashings needing feathering-in and other factors
Additional components/materials not listed here might be needed.
For additional guidance, contact our sales staff at 818-888-0050
AVM reserves the right to change any information on this document at any time witout notice.

Plywood
  • How many square feet is your job?

  • SYSTEM COMPONENTS
  • WHAT YOU NEED
  • AVM Aggregate 400 @ 1/4" thick

  • Bags
  • AVM Additive 7400 (1.0 Gal/bag)

  • Gallons *
  • AVM Primer 100 (* Twice)

  • Gallons
  • Base 100

  • Gallons
  • AVM Aggregate 200 @ 1/8" thick

  • Bags
  • AVM Additive 7400 (1.25 Gal/bag)

  • Gallons *
  • Top Coat Sealer 4100/4150 Clear

  • Gallons
  • AVM Mat 100 50" wide

  • Rolls
  • or
  • AVM Mat 800 40"x324'

  • Rolls
  • Acripatch 5020 **

  • Gallons
  • OPTIONAL COMPONENTS
  • AVM Mat 800 (12"x300')

  • L/F
  • AVM Mat 800 (6"x300')

  • L/F
  • WANT TO SAVE A COPY?

Refer to page 2 of “Specifications Sheet” (in pdf) for available packaging sizes
This is an estimating tool only. Actual quantities needed may vary by job conditions and other factors.
* Primer is used twice! Once over the plywood (Before Crete 6400 layer) and once over the concrete layer before membrane application
** Acripatch quantities could vary significantly based on the amount of prep needed, flashings needing feathering-in and other factors
To reduce/prevent cracking, AVM Recommends that AVM Crete 6400 be a min 1/2″ thick when installing the Forevercoat over plywood.
Additional components/materials not listed here might be needed.
For additional guidance, contact our sales staff at 818-888-0050
AVM reserves the right to change any information on this document at any time witout notice.

ARCHITECTURAL DETAILS

SYSTEM 100 FOVERCOAT

BIM, REVIT

4100-Top-Coat_Material_Catalog (RVT)
0100-AVM-System-100-Forevercoat-Floor (RVT)
0100-AVM-System-100-Forevercoat-Roof (RVT)

OVER CONCRETE SUBSTRATES

0100-FEC-001-C-Assembly-Over-Concrete-ISO (PDF) (CAD)
0100-FEC-002-C-Assembly-Over-Concrete-CS (PDF) (CAD)
0100-FEC-142-C-Threshold-Over-Concrete-CS (PDF) (CAD)
0100-FEC-162-C-Drain-Over-Concrete-CS (PDF) (CAD)
0100-FEC-462-C-Curb-Over-Concrete-CS (PDF) (CAD)

OVER PLYWOOD SUBSTRATES

0100-FEC-501-P-Assembly-Over-Plywood-ISO (PDF) (CAD)
0100-FEC-502-P-Assembly-Over-Plywood-CS (PDF) (CAD)
0100-FEC-602-P-Stairs-Crete-On-Tread-&-Riser-Over-Plywood-CS (PDF) (CAD)
0100-FEC-604-P-Stairs-Crete-On-Tread-Only-Over-Plywood-CS (PDF) (CAD)
0100-FEC-621-P-Stair-Flashing-Over-Plywood-ISO (PDF) (CAD)
0100-FEC-642-P-Threshold-Over-Plywood-CS (PDF) (CAD)
0100-FEC-752-P-Drain-Over-Plywood-CS (PDF) (CAD)
